PBD4 for Laser interstitial thermal therapy (LiTT)

$500.00

In stock

SKU

PBD4

Qty

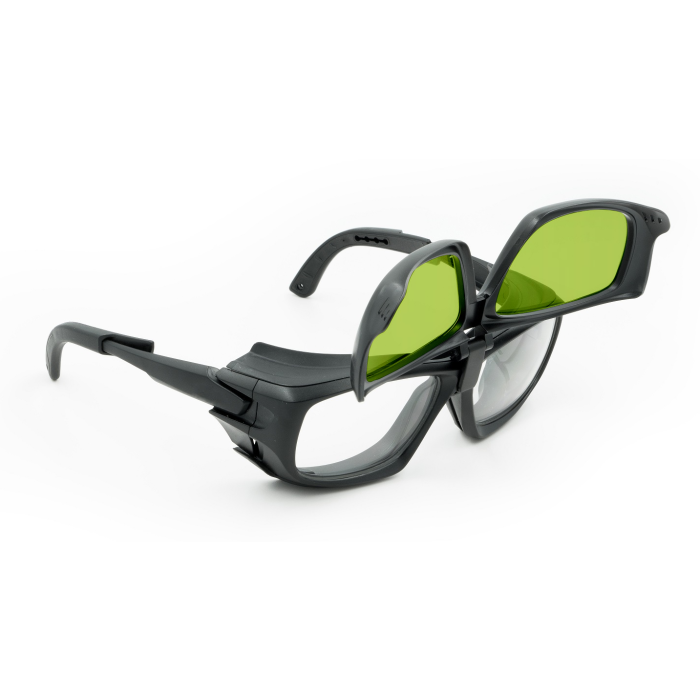

Designed to deliver both X-ray and laser protection for surgical procedures. Protection for both hazards simplified by using a single pair of safety glasses. Clear viewing through the leaded glass until flipping down the laser safety filter when it’s required
NoIR Radiation Protection base features standard 0.75mm lead equivalency Schott SF-6 HT glass lenses, affording radiation protection through the range of 70 to 120 Kvp. Note, leaded glass eyewear is designed for professional radiation protection use only and is not intended for use in potentially high impact environments activity.
The flip features laser protection filter YG4 for tumor treatments involving Laser Interstitial Thermal Therapy (LiTT), a minimally invasive, MRI guided procedure that uses heat to destroy brain tumors, epileptic foci, or radiation necrosis, using laser light energy at 800, 940, 980, 1064nm OD 5+.

Final product CE certified:	Yes
Frame Style:	One plus One
Frame Number:	Frame 49
Frame Features:	Universal‚ Large Flip-down for multiple wavelengths coverage Empty base ordering option for Rx insertion Extendable temple arms for the perfect fit Ratchet temples to adjust fit angle Light-sealing comfort fit gasket
Frame Color:	Black
Frame General Size:	One plus One-large
Frame Size Width:	144mm
Temple Length:	146mm
Frame Size Height:	49mm
Lens Color:	Green
VLT:	22%
CE Rating:	180-315 D LB10 + IR LB4 + M LB6Y >315-450 D LB6 + IR LB7 + M LB7Y >450-460 DIR LB3 + M LB3Y >720-750 DIR LB5 + M LB5Y >750-800 D LB6 + IR LB7 + M LB7Y >800-1120 D LB7 + IR LB8 + M LB8Y >1120-1145 DIR LB5 + M LB5Y S
Ce Certified:	Yes
Wavelength (nm) / OD:	800nm 5+ 940nm 5+ 980nm 5+ 1064nm 5+
Disclaimer:	Filter characteristic data points are nominally represented here solely for informational purposes. We guarantee only those specifications, including Optical Densities, CE ratings and VLT, that are imprinted on the eye protectors and listed on filter data sheets and web pages.
