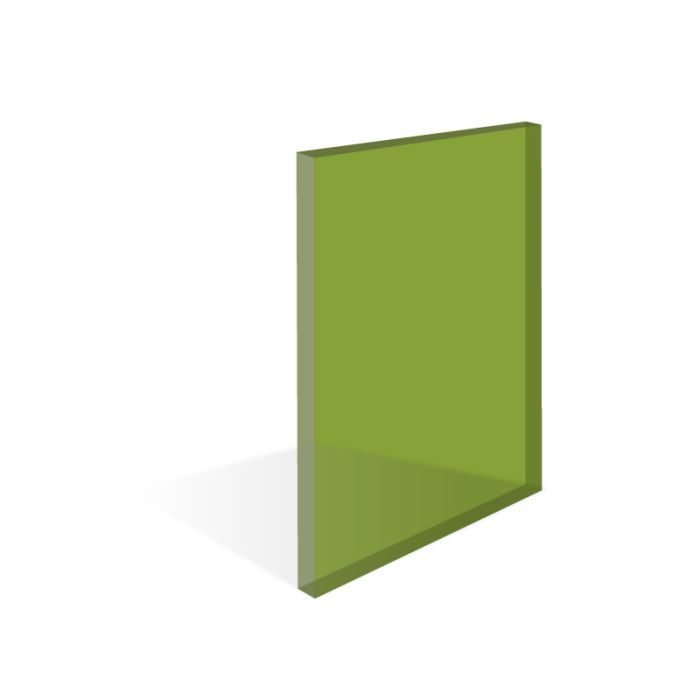

Laser Safety Windows are priced in single square foot increments
Available stock at 24” x 36” x .125” and special order up to 36" x 48" x .125
Allow + or - 1/8" tolerance in width and length
Custom cuts available
Attenuates from 1000 nm to 1150 nm for fiber laser cutting, disc lasers (Yb:YAG), marking and welding systems including 1030nm, 1050nm, 1060nm, 1064nm (Nd:YAG), 1070nm, 1080 nm, 1090nm, 1100nm, 1130nm, and 1150nm. Replaces YGW125
available stock at 24" x 36" x .125" and special order up to 36" x 48" x .125"
Yb:YAG
Attenuates from 1000 nm to 1150 nm for fiber laser cutting, disc lasers (Yb:YAG), marking and welding systems including 1030 nm, 1050 nm, 1060 nm, 1064 nm (Nd:YAG), 1070 nm, 1080 nm, 1090 nm, 1100 nm, 1130 nm, and 1150 nm. Replaces YGW125
Thickness at .125"
Priced in single square foot increments.
Details:
Final product CE certified:
Yes
Product Category Type:
Laser Filter
Lens Color:
Green
VLT:
50%
EN 12254 Rating:
D AB4 + IR AB6 + M AB6Y 1000 - 1150D AB4 + IR AB7 + M AB7Y 1060 - 1100DI AB2 10600
Ce Certified:
Yes
Wavelength (nm) / OD:
1000-1150 OD 5+ 1060-1100 OD 7+ 10600 OD 5+
Disclaimer:
Filter characteristic data points are nominally represented here solely for informational purposes. We guarantee only those specifications, including Optical Densities, CE ratings and VLT, that are imprinted on the eye protectors and listed on filter data sheets and web pages.
